МОДЕЛЬ

1200

1450

1600

1800

Бумажный материал

Картон плотностью 210-800 г/м², A/B/E Flute

Максимальная скорость

260 м/мин

Максимальная толщина сложенной коробки

12 мм

12 мм

12 мм

12 мм

Способ складывания

Угол сгиба 1 и 3 составляет 180° и 135°, угол сгиба 2 и 4 составляет 180°.

Источник питания

3P 380V 50HZ

Ширина пустого пространства

1200 мм

1450 мм

1600 мм

1800 мм

Длина × Ширина × Высота

16×1,96×1,6 м

16×2,26×1,6 м

16×2,4×1,8 м

17×2,6×1,8 м

Вес нетто

9,5Т

10,5Т

11,5Т

12.0Т

Суммарная мощность

22 кВт

22 кВт

25 кВт

25 кВт

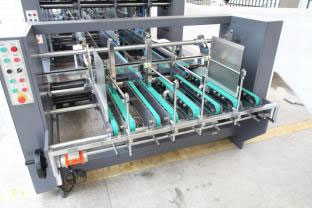

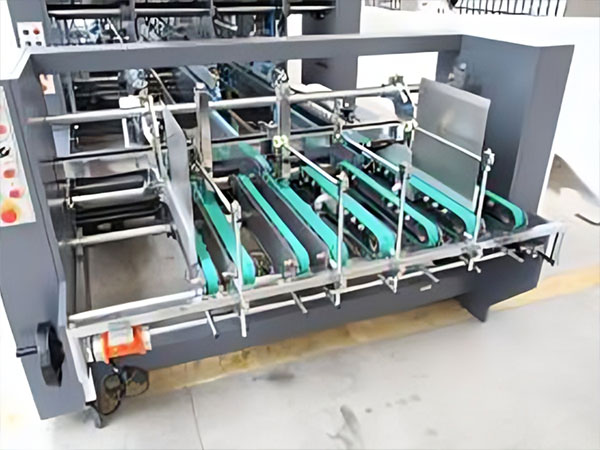

Paper Feeding Section

1. Equipped with an air suction function.

2. Multi-stage rail to ensure the verticality of the pressing board. To ensure that the paper feeding is not skewed.

3. The unique structure keeps a simpler and more convenient adjustment of the pressing board. Push structure makes supporting the cardboard adjustment more convenient and stable.

4. The baffles on the left and right can be adjusted up and down to shorten the adjusting and carton changing time.

5. The vibration device coordinates with the motor, which helps the machine feed consecutively and automatically feed quickly and simply.

Aligner Section

1. The paper board sent from the feeder section will be corrected by the aligner section to ensure accurate transmission.

2. Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.

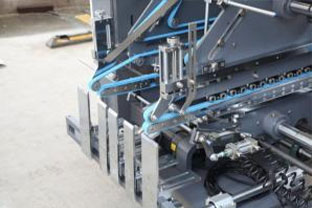

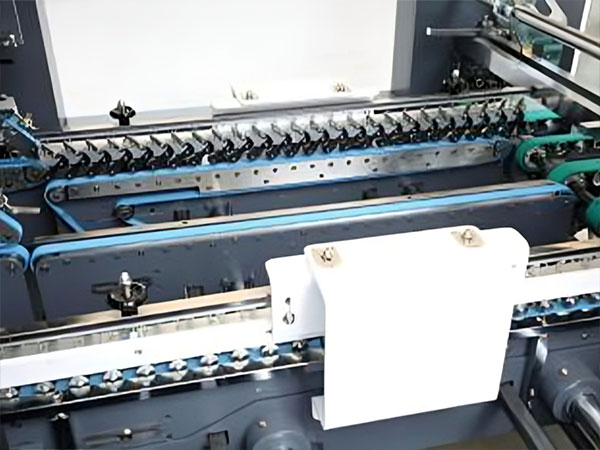

Pre-folding and Bottom lock section

1. The function of pre-folding and lock bottom is shared; one machine has multiple functions.

2. Pre-folding meets automatic packaging requirements

3. The lock bottom box can also be perfectly formed

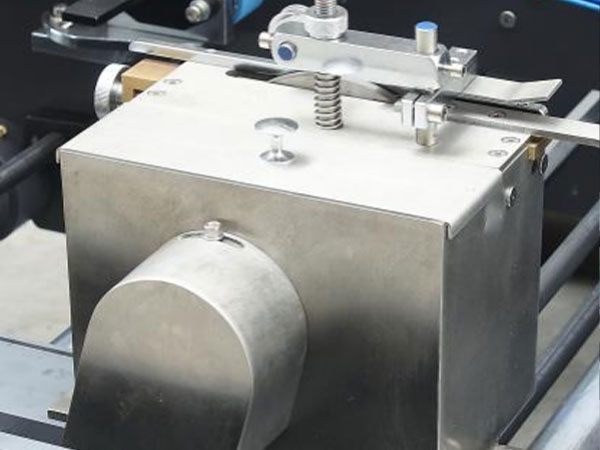

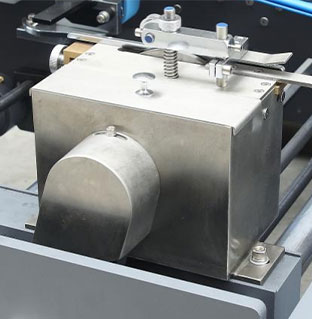

Lower Gluing Tank

1. The lower gluing tank is 2L.

2. Easy to remove and clean.

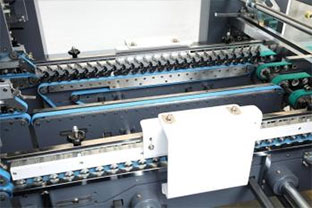

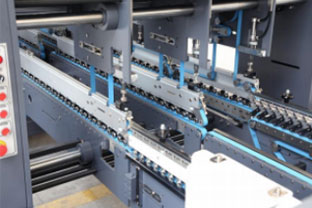

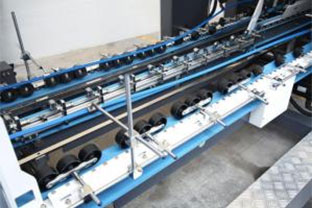

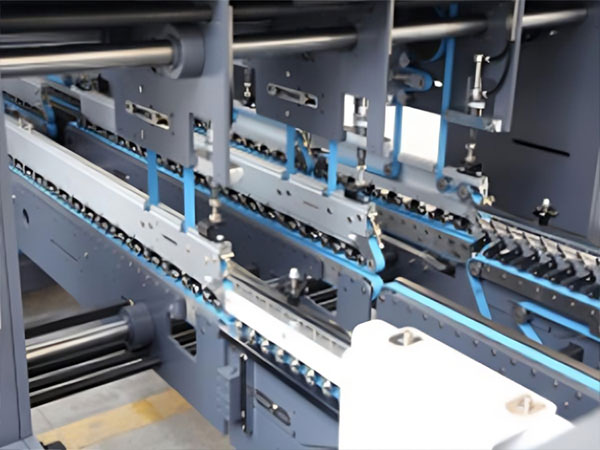

Folding and Closing

1. Equipped with a flexible box-forming device to ensure the perfect forming of the box.

2. The upper pressure belt adopts the main drive and cylinder pressure more suitable for different thickness corrugated products.

3. Folding section with servo motors, which can adjust the folding section belts' speed separately.

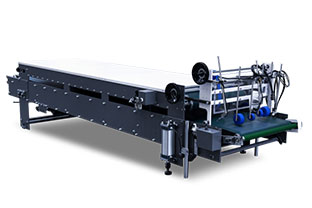

Trombone Section

1. The belt can be adjusted independently.

2. Independently adjust the speed and draw back the distance of the paper, convenient for collection.

3. Equipped with an electronic photoelectric counting function, convenient for counting.

Transmission

1. The pressing and  Transmission unit has a regulator, a patting device, which can effectively avoid the “scissors mouth” phenomenon of corrugated products.

2. The pressing and Transmission unit adopts a waiting function. When the feeding section is in the pause status, it will automatically enable the waiting function. If has error in the paper collection unit, it will automatically stop the machine work.

Cold Glue System

Equipped with three guns, convenient in the production of  4/6  corner box and various special-shaped boxes, gluing quickly and accurately sizing.

Model

1200Type

1450Type

1600Type

B+C+D+E

280- 1200

350- 1450

350- 1600

E(Min)

30

30

30

E(Max)

500

500

500

F

100- 1350

100- 1350

100- 1400

G(Max)

1450

1450

1500

Модель

1200Тип

1450Тип

1600Тип

B+C+D+E

280-1200

350-1450

350-1600

E(мин)

30

30

30

E(Макс)

500

500

500

Ф

100-1100

100-1350

100-1500

G(Макс)

1400

1400

1400

H(мин)

35

35

35

Л

30-120

30-120

30-120
